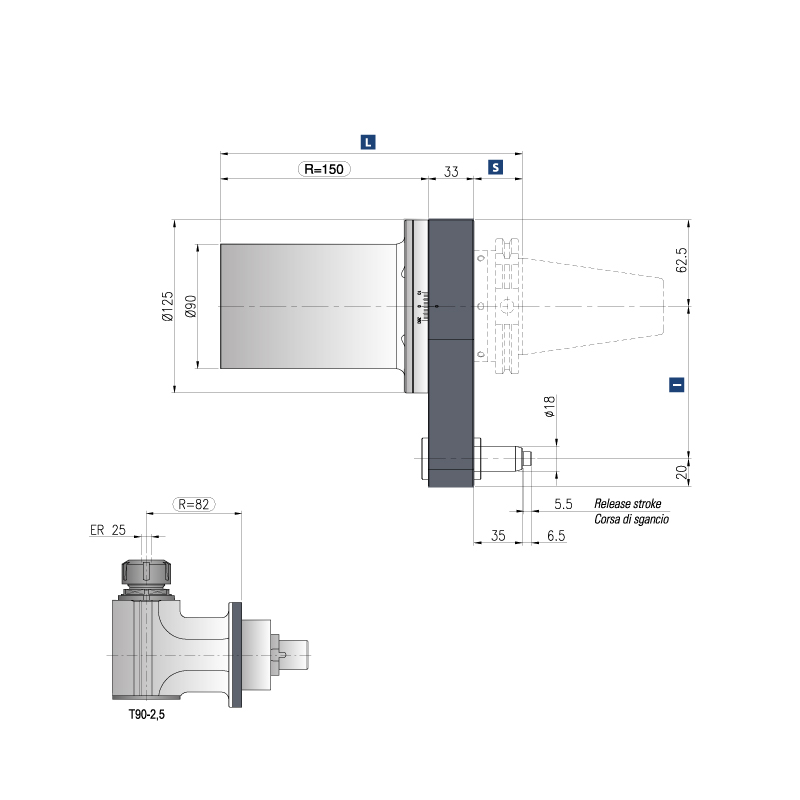

T90 EXTENDED HEAD + T 90-2,5

T90 EXTENDED HEAD + T 90-2,5

Suitable for:
Extended lenght 90° head machinings
Ratio
1:1
RPM up to
6000 min-1
Max axial load
510N N
Torque
30Nm Nm
kg
Weight
16,7 Kg
Collet
ER 25 (1/16 mm)
Pdf catalogue download

Enter your details to receive the link to the pdf catalog of this product.

Shank available

ISO 69871
ISO 50
MAS-BT
BT 50
HSK
HSK 100, HSK 125, HSK 63, HSK 80, HSK 80-F
BBT
BBT 50
CAPTO
CAPTO C6, CAPTO C8
CAT
CAT 50

Output available

Collet
ER 25
Arbor output
16mm
Weldon
Ø 16mm
HSK
HSK 32
