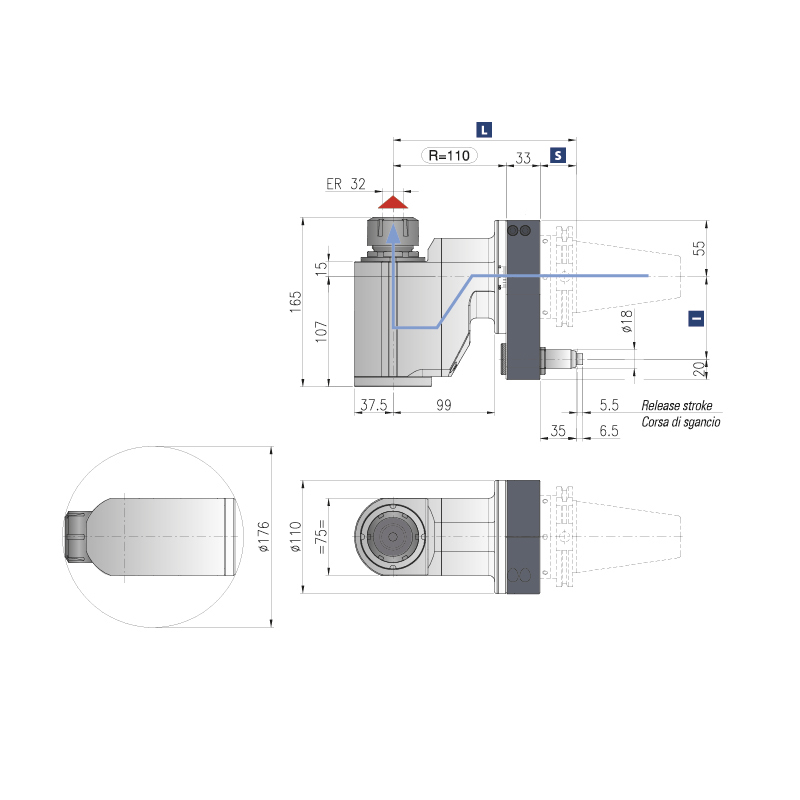

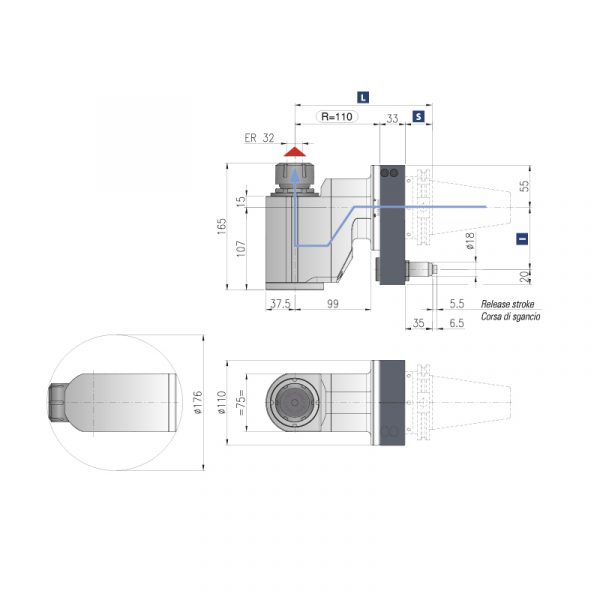

TH90cn-3.5

TH90cn-3.5

Ratio
1:1
RPM up to
8.000 min-1
Max axial load
1250 N
Torque
50 Nm
kg
Weight
13 Kg
RPM dry running
4.000 min-1
Pressure
100 bar max bar
Collet
ER-32 (ø 2/20 mm)
Smart Change option
Disponibile
Download pdf catalog

Enter your details to receive the link to the pdf catalog of this product.

Shank available

ISO 69871
ISO50
MAS-BT
BT50
HSK
HSK63 / HSK80 / HSK100 / HSK80-f / HSK125
BBT
BBT50
CAPTO
CAPTO C6 / CAPTO C8
CAT
CAT50

Output available

Collet
ER 32
Arbor output
27mm
Weldon
Ø 20mm
