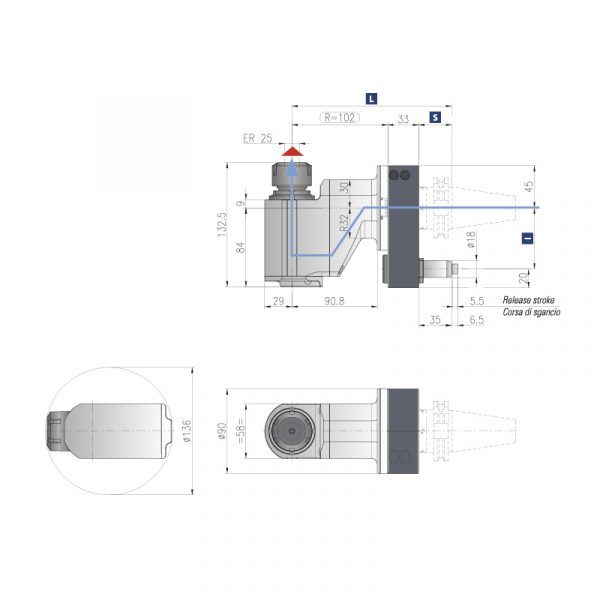

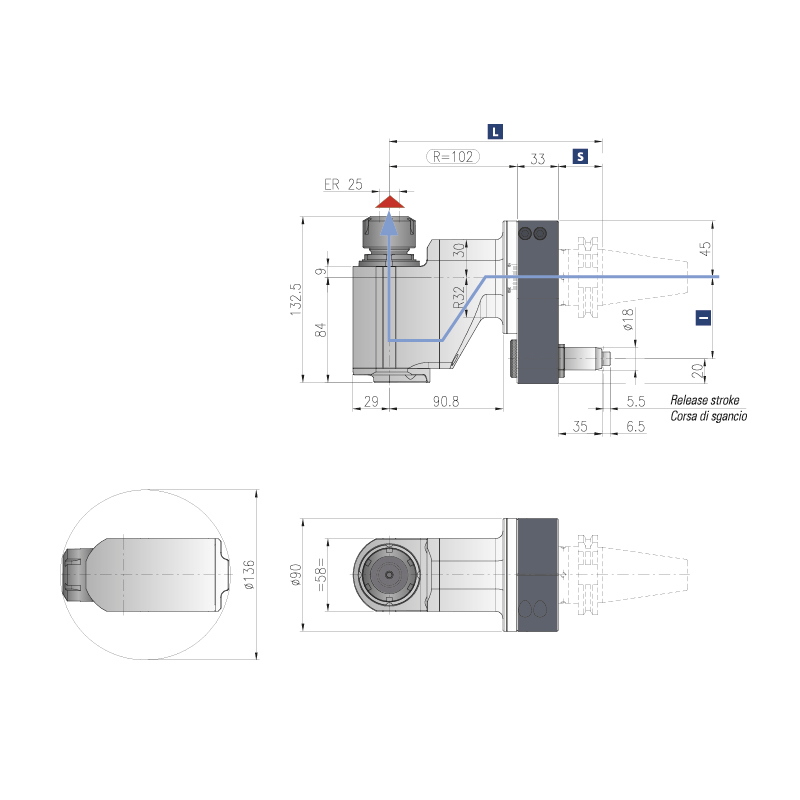

TH90cn-2.5

Control Line

Suitable for:

90° Head machinings

Ratio
1:1

RPM up to
9000 min-1

Max axial load
510 N

Torque
30 Nm

Weight
5,5 Kg

RPM dry running
6.00 min-1

Pressure
100 bar max bar

Collet
ER-25 (Ø 1/16 mm)

Enter your details to receive the link to the pdf catalog of this product.

Shank available

ISO 69871
ISO 40, ISO 50

MAS-BT
BT 40, BT 50

HSK
HSK 100, HSK 125, HSK 63, HSK 80, HSK 80-F

BBT
BBT 40, BBT 50

CAPTO
CAPTO C6, CAPTO C8

Output available

Collet
ER 25

Arbor output
16mm

Weldon
Ø 16mm
