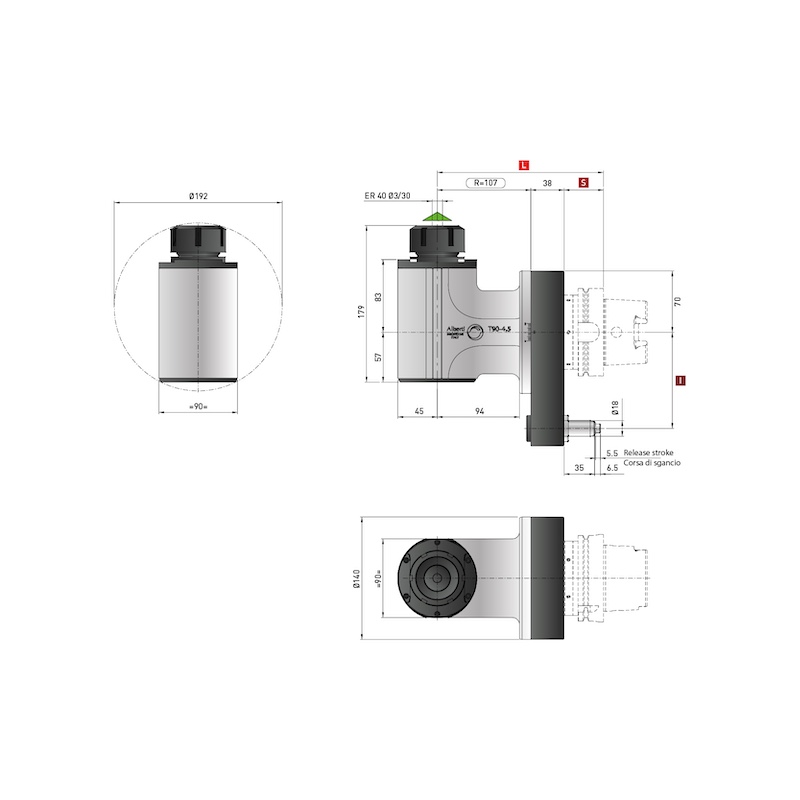

T90cn-4.5 Neo

Control Line, Neo Line

Suitable for:

90° Head machinings

Ratio
1:1

RPM up to
6000 min-1

Max axial load
1750 N

Torque
90 Nm

Weight
17 Kg

RPM dry running
4.00 min-1

Collet
ER-40 (ø 3/30 mm)

Enter your details to receive the link to the pdf catalog of this product.

Shank available

ISO 69871
ISO 50

MAS-BT
BT 50

HSK
HSK 100, HSK 125, HSK 80, HSK 80-F

BBT
BBT 50

CAPTO
CAPTO C8

CAT
CAT 50

Output available

Collet
ER 40

Arbor output
27mm

Weldon
Ø 25mm

HSK
HSK 40

CAPTO
C4
